Description

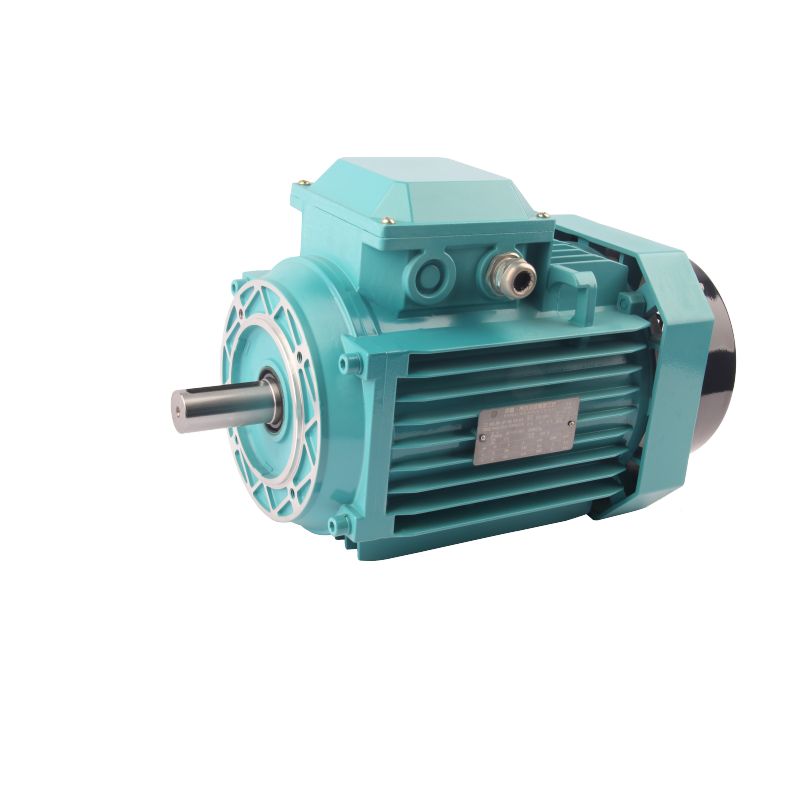

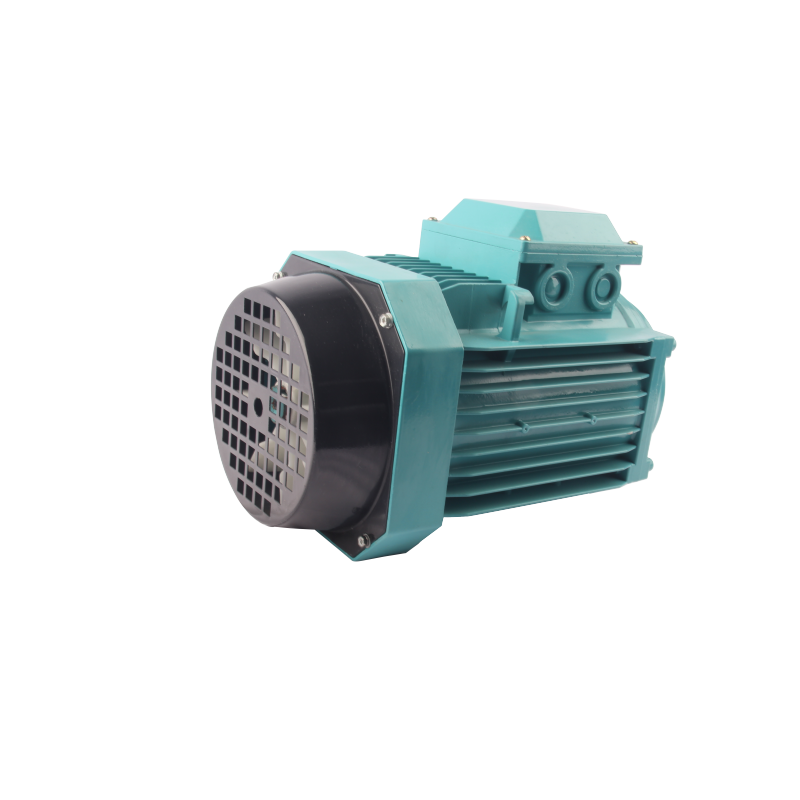

FLA2/FLF2/FLG2 series aluminium housing three phase asynchronous motors are developed from cast iron housing three phase asynchronous motors, since aluminum-alloy material has been introduced into its housing, end shield, terminal box and removable feet. Motor has wonderful appearance and smooth surface. Despite that, dimensions and output power of FLA/FLF/FLG series aluminium housing motors are the same as those of IE2/IE1 series three phase asynchronous motors.

FLA2/FLF2/FLG2 series aluminium housing motors have lots of futures such as high efficiency and energy saving, large starting torque, excellent performance, low noise and vibration, compact structure, high reliability, easy operation and etc.

Operating conditions of FLA/FLF/FLG series aluminium housing motors have efficiency class according to IEC60034-30, simultaneously, we supply IE3/IE2/IE1 series aluminium housing motors in conformity with IEC standard for customers.

Technical Parameters

Rated Power：0.06kW-18.5kW

Frame Size：H56-H160

Frame Material：Aluminum

Rated Voltage：220V-1140V

Rated Frequency：50Hz/60Hz

Ingress protection：IP54/IP55/IP56/IP65/IP66

Insulation Class：F

Work Duty：S1-S6

Technical Bright Spots & Consumer Benefits

Technical Bright Spots

1. Smooth surface morpholog
2. Less weight
3. Reasonable structure and good heat dissipation performance.
4. can be customized for different sizes of flange joints and output shafts, as well as cast iron and cast aluminum casting materials.

Consumer Benefits

1. Beautiful appearance,good rust prevention and strong corrosion resistance
2. Reduce the weight of the whole machine, reduce the load bearing equipment, reduce the logistics and transportation costs of customer equipment
3. The reliable operation leads to the high efficiency
4. Easy installation can reduce the cost of mechanical structure
5. Meet customer personalized customization requirements
