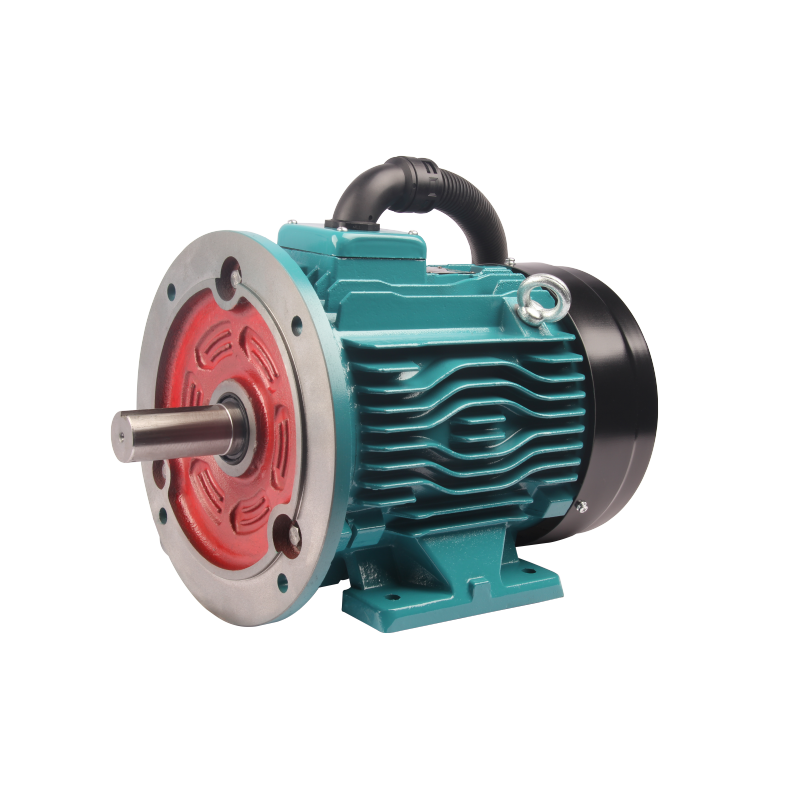

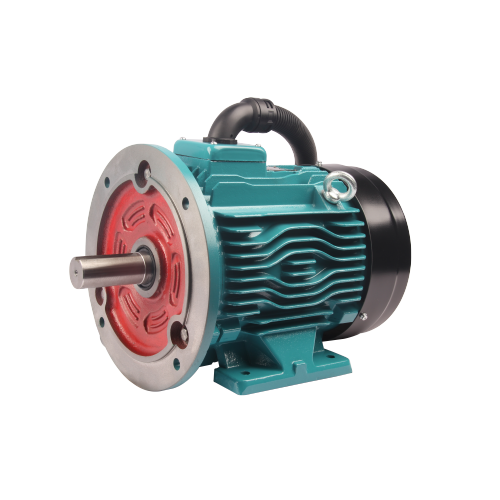

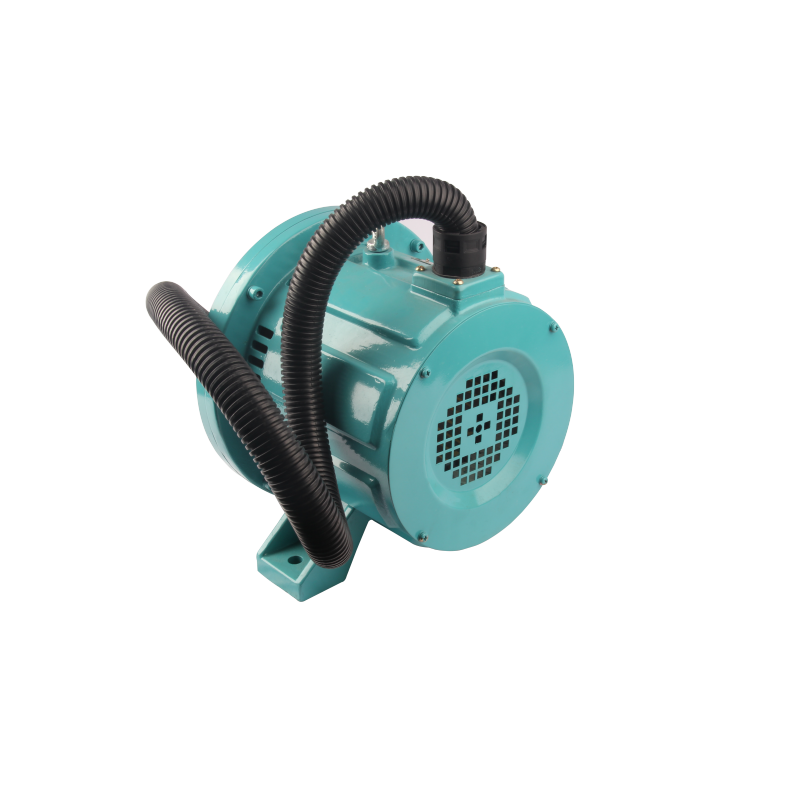

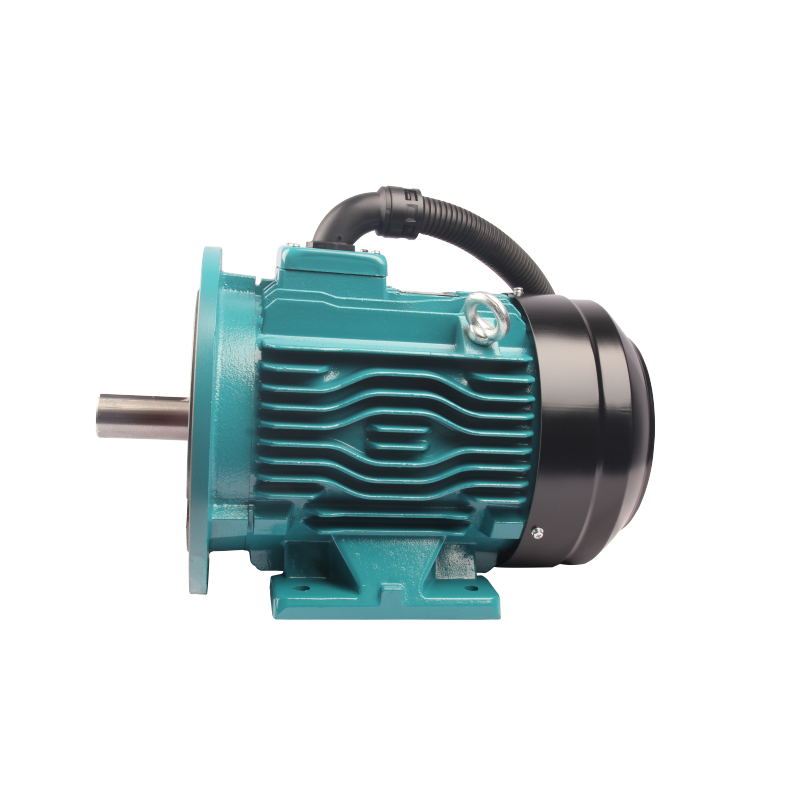

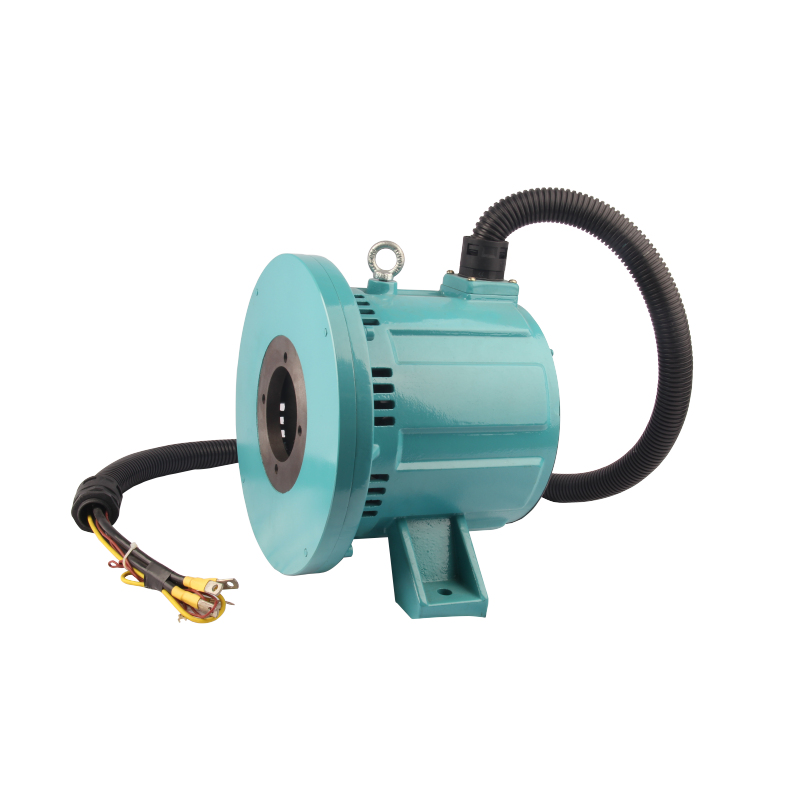

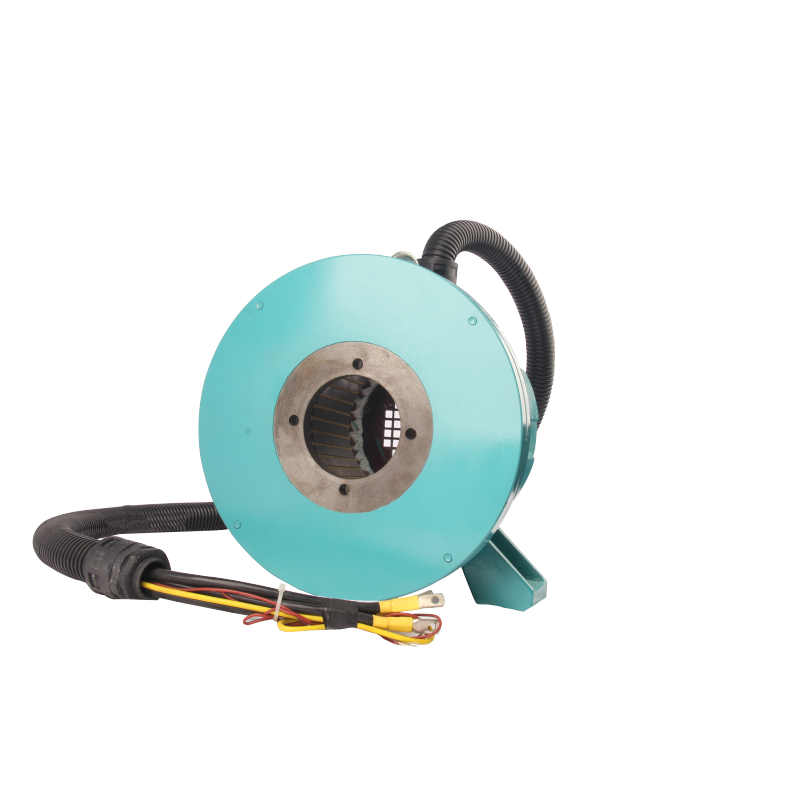

FPM/FYPM series permanent magnet synchronous AC motor
FPM series is permanent magnet motor, with ultra efficiency. Installation method conforms to IEC standard, in part load it tracks the load power and keeps high efficiency, at full load it runs efficiently
Choice
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
Packaging & Delivery
- Selling Units:
- 20ft container
- Lead Time:
-
Quantity(20ft container) 1 2 - 5 6 - 10 11 - 30 >30 Est. Time(days) 30 50 60 90 To be negotiated
Description
FPM series electric motor is totally enclosed with rare earth permanent magnet. Based on NdFeB permanent magnet and special rotor structure design, motor has characteristics such as high overload capacity, ultra efficiency, high power factor, stable operation, simple maintenance and strong interchangeability. It concentrates the advantages of both asynchronous motor and general synchronous motor. Installation method conforms to IEC standard, it is an ideal product for export with international generality,
FPM series electric motor has the feature of super energy saving, in part load it tracks the load power and keeps high efficiency, at full load it runs efficiently. Compared with the ordinary variable frequency motor, speed regulation range is wider and energy saving performance is more outstanding.
FPM series electric motor has a wide range of applications, such as elevators, fans, pumps, belt machines, machine tools, textile machinery, electric vehicles, screw compressors, etc. It can be widely used in petroleum, chemical, electric power, transportation, textile and other industries.
Technical Parameters
Rated Power：2.2kW-400kW
Frame Size：H100-H355
Frame Material：Cast Iron
Rated Voltage：220V-1140V
Rated Frequency：5-200Hz
Speed：0-3000 RPM
Ingress protection：IP54/IP55/IP56/IP65/IP66
Insulation Class：F/H
Work Duty：S1-S6
Technical Bright Spots & Consumer Benefits
Technical Bright Spots
1. Stable operation and simple maintenance
2. High overload capacity, high efficiency and the feature of super energy saving
3. It conforms to GB 30253-2013 Class Ⅰ energy efficiency standard for variable frequency permanent motor which far exceeds IE4 efficiency
4. It can be widely used in most kinds of equipment
Consumer Benefits
1. Motor stability is good to reducing customer's equipment maintenance costs
2. Increase efficiency and reduce the energy cost
3. Reduce operating costs and improve customer's competitiveness
4. It has a wide range of applications and provide convenience for users
